Form & Function
The goal of this project was to take a normal household item with two or more moveable parts and add it into the structure of the bridge. This transforms the bridge from just a form to both form and function.
Span Prototypes
Quebec Bridge
Sydney Bridge
Commodore Barry Bridge
Movement Analogy
The moveable part of these objects is to act as the part of the bridge intended to raise and lower a section of the roadbed to make a clear 30 x 40 section of the bridge for boats to safely travel through.
3x3 Conceptual Table
Design Process
Initial First design of the bridge with moveable parts
Secondary design with greater knowledge of what the requirements were.
.png)
completed design with rollers and structure

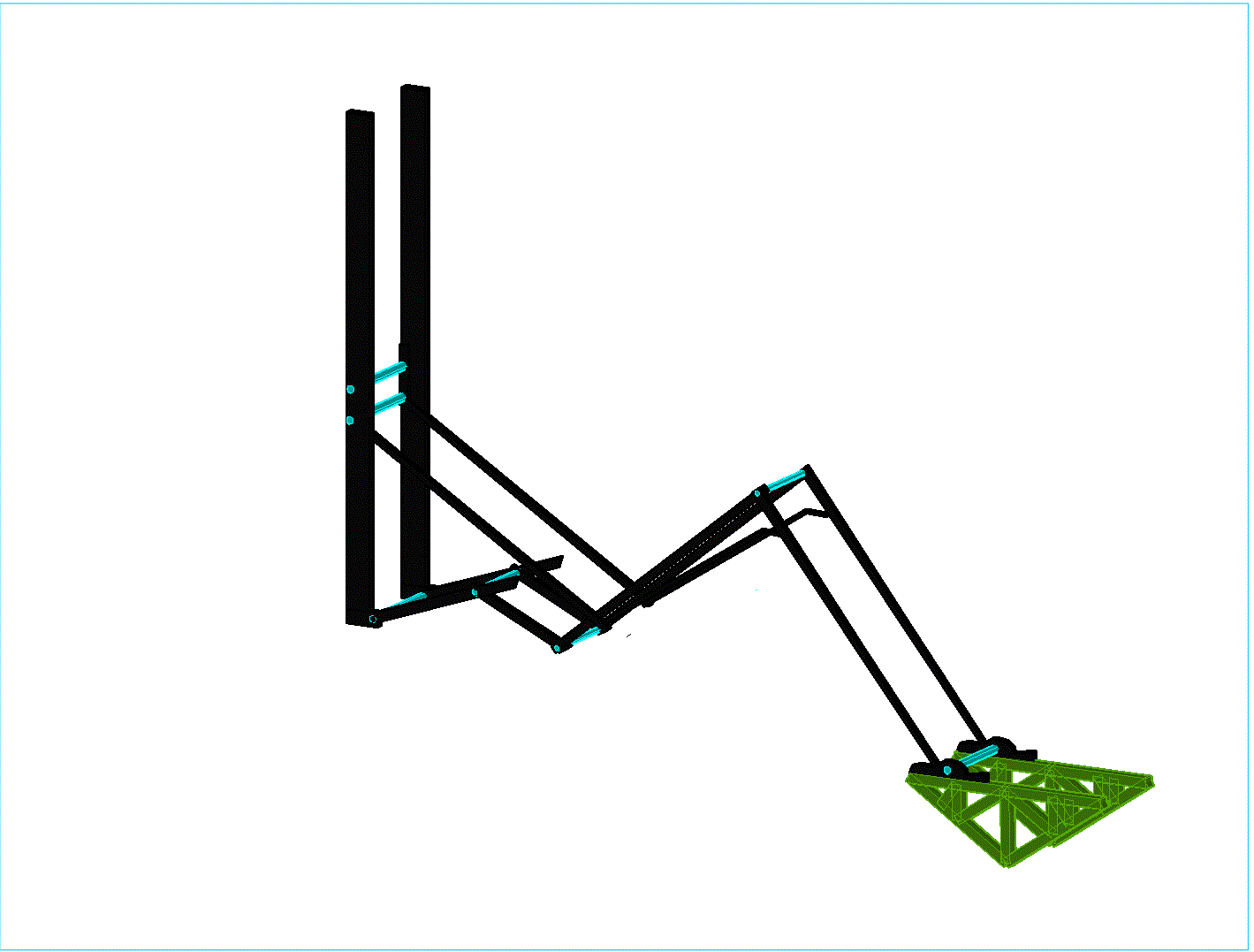

Mechanism
Final Design
